Miflex SPG Console - White Face SPG

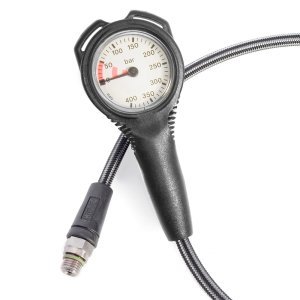

The Miflex SPG Console combines a Miflex White Face Submersible Pressure Gauge (SPG) in a Console with a 75 cm (30 inch) long Miflex Carbon Black HD high pressure hose and Air-Spool. The SPG face is luminescent — so a simple brief shine on them with a dive torch on your night dive will keep it illuminated for quite some time.

Miflex White Face Submersible Pressure Gauge (SPG)

An extremely compact cylinder pressure gauge incorporating a safety-pin-type tube and a gear mechanism, which provides outstanding accuracy and durability.

The clear and bright phosphorescent dial face provides excellent readability, also in demanding conditions.

The Miflex submersible pressure gauge is suitable for up to 300 bar cylinders and has a 400 bar maximum value display. The colour coding on the dial is red screened from 0 to 50 bar for reserve air. Numerical pressure increments are 50, 100, 150, 200, 250, 300, 350 and 400 bar with 20 bar increment indicators.

This SPG has a one-piece brass body with a Lexan/polycarbonate transparent window. It has standard 7/16" UNF threaded fitting compliant with the ISO 263 standard for connection with demand controls (regulators). The pressure gauge is a Category III device as defined under European Directive 89/686/CEE, and complies with the specifications set out in the European Standard EN 250/2000. This SPG has been tested and CE certified by Registered Test Centre #0426 in Italy.

Miflex SPG Console Features:

• Compact and thin, high-quality submersible pressure gauge (SPG)
• Nickel plated brass single-cast case
• Durable, Lexan chip-resistant dial with gasket
• Ready to mount directly to high pressure hose
• Fluorescent dial with reserve indicator
• Wide 270º sweep from 0 to 400 bar
• Bright, white face - easy to read
• Manufactured by Termoindustria in Italy

Characteristics:
Accuracy: The guaranteed accuracy of the pressure measurement is:
at 50 bar ± 5 bar
at 100 bar ± 10 bar
at 200 bar ± 10 bar
at 300 bar ± 15 bar
Connecting port airflow: <100 litres/min. at a pressure of 100 bar.

Console

The ergonomic sleek styling of the Console offers a low and compact profile and an extremely comfortable grip. The Console is made from durable impact-resistant plastic and has two attachment areas at the top integrated into the design for the attachment of clips or a lanyard.

Miflex Carbon HD High Pressure Hose

The console SPG is attached to a 75 cm (30 inch) long Miflex Carbon Black HD high pressure hose. The Miflex HP hose has a 7/16-inch Male connector at the end that screws into the first stage regulator HP port.
