Miflex Tech SPG Console - Black Face SPG

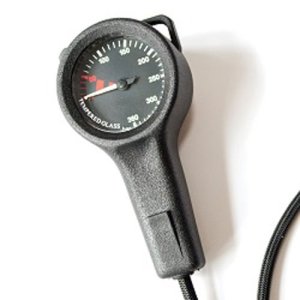

The Miflex Tech SPG Console combines a Miflex 52mm Tech Brass and Glass Black Face SPG Submersible Pressure Gauge (SPG) in a Console Boot with a 75 cm (30 inch) long Miflex Carbon Black HD high pressure hose and Air-Spool. The SPG face is luminescent — so a simple brief shine on them with a dive torch on your night dive will keep it illuminated for quite some time.

The Miflex Tech Black Face SPG Console is often used in technical diving and has a great degree of accuracy and reliability. Preferred for its simplicity by many technical divers, and divers who follow DIR training philosophy.

Miflex 52mm Tech Brass and Glass Black Face SPG Submersible Pressure Gauge

The Miflex Tech Brass and Glass SPG Submersible Pressure Gauge (SPG) with Black Face is a compact and robust cylinder pressure gauge, which provides outstanding accuracy and durability.

Suited for technical divers, or top quality regulators, this gauge has double chrome mirror plated case treatment to assure maximum protection against corrosion. The brass housing with tempered glass gives extreme durability and the opportunity to use the gauge with no cover protection due to double welding and copper beryllium bourdon tube mechanism that never goes out of calibration even with hard shocks.

The gauge is used in technical diving and has a great degree of accuracy and reliability. Preferred for its simplicity by many technical divers or divers who follow the DIR training philosophy.

The Miflex Tech Brass and Glass SPG is suitable for up to 300 bar cylinders and has a 400 bar maximum value display. The colour coding on the dial is red screened from 0 to 50 bar for reserve air. Numerical pressure increments are 50, 100, 150, 200, 250, 300, 350 and 400 bar with 10 bar increment indicators.

This pressure gauge has standard 7/16" UNF threaded fitting compliant with the ISO 263 standard for connection with demand controls (regulators). The pressure gauge is a Category III device as defined under European Directive 89/686/CEE, and complies with the specifications set out in the European Standard EN 250/2000. This SPG has been tested and CE certified by Registered Test Centre #0426 in Italy.

Miflex 52mm Tech Black Face SPG Features:

• Compact and robust, high-quality submersible pressure gauge (SPG)
• Nickel plated brass case
• Tempered glass lens
• Ready to mount directly to high pressure hose
• Fluorescent dial with reserve indicator
• Wide 270° sweep from 0 to 400 bar
• Black face - easy to read
• Built-in over pressure relief for safety
• Manufactured by Termoindustria in Italy

Tech SPG Dimensions:
Diameter: 52 mm
Width: 25 mm

Tech SPG Storage

After use, it is recommended to rinse the instrument in fresh water while it is still assembled on the regulator, to prevent water from penetrating inside the hose.

Allow to air dry, and then put the instrument away, taking care to replace the special protection cap on the hose threading. The instrument should be stored in a dry place, protected from heat sources and direct light, without bending the hose too tightly (minimum bend radius 20 cm).

Tech SPG Maintenance

The pressure gauge does not require any special maintenance. It is recommended that the 108 O-ring Viton gasket, located on the threads of the hose coupling which connects to the pressure reducer, be replaced periodically. Any maintenance or repairs must be performed by authorised personnel.

Console Boot

The ergonomic sleek styling of the Console offers a low and compact profile and an extremely comfortable grip. The Console is made from durable impact-resistant plastic and has two attachment areas at the top integrated into the design for the attachment of clips or a lanyard.

Miflex Carbon HD High Pressure Hose

The Tech SPG Console SPG is attached to a 75 cm (30 inch) long Miflex Carbon Black HD high pressure hose using an air-spool. The Miflex HP hose has a 7/16-inch Male connector at the other end which screws into the first stage regulator HP port.
