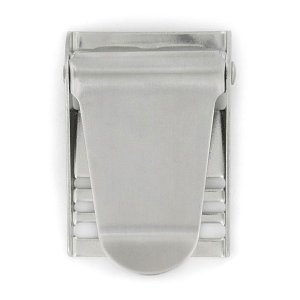

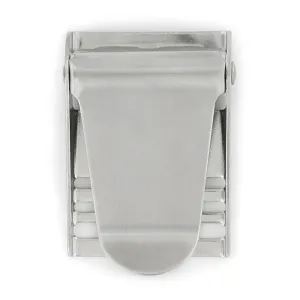

Sonar Deluxe Stainless Steel Weight Belt Buckle

The Sonar Deluxe Stainless Steel Quick Release Weight Belt Buckle is for use with 2 inch (50 mm) webbing. The three slot design means you can properly secure your weight belt or BCD waist belt in place, yet still be able to safely release it in an emergency. This premium metal buckle is the preferred heavy-duty pinned hinge design made from 316-series stainless steel, suitable for marine applications.

This latch-style belt buckle threads easily to standard 50 mm (2 inch) nylon webbing or rubber weight belt.

Sonar Deluxe Stainless Steel Weight Belt Buckle Features

• Non Corrosive 316 Marine Stainless Steel
• Threads on Standard Nylon or Rubber 50 mm (2 inch) Webbing
• Works with Rubber Belts
• Latch-Style Belt Buckle
• Great Save-A-Dive Kit Item

Technical Tip

Threading a 3-Slot Quick-Release Belt Buckle

Starting from the front of the metal buckle, thread the left waist strap through the larger end slot of the buckle. Position the buckle approximately 45 cm (18 inches) of webbing length from the plate left waist slot. Then thread the webbing from the back through the centre slot and through the front of the inner most slot. Then thread the webbing through the back of the larger end slot so there are two thicknesses of webbing through one slot and pull the weave tight.

See also, How to Thread a Weight Belt Buckle.

(01/19 LRB)
